Door Hardware Products

Your safety is our top priority. Our fire-rated hinges, lock mechanisms, door closers, and door viewers are internationally certified, heat-resistant, and built to last — providing maximum protection in emergency situations.
Choosing the right hardware is critical in the event of a fire — trust us to help safeguard your projects.

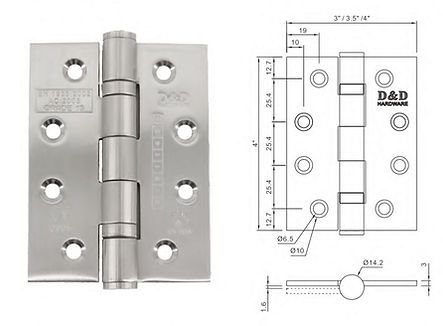

Hanging Devices / Mortise Hinge Grade 1

Features

Double ball bearing, five knuckle hinge
Successfully type tested for conformity to all the the requirements of BS EN1935 / EN 1634
Supplied with SS Screws
Load bearing capacity up to 120kg
Available in square ot radius corner
Tested to over 200,000 cycles
Suitable for fire/smoke resistant doors
Finished with softened edges
Pre-cut intumescent hinge pads available

Hanging Devices / Mortise Hinge Grade 2

Features

Double ball bearing, five knuckle hinge
Successfully type tested for conformity to all the the requirements of BS EN1935 / EN 1634
Supplied with SS Screws
Load bearing capacity up to 120kg
Available in square ot radius corner
Tested to over 200,000 cycles
Suitable for fire/smoke resistant doors
Finished with softened edges
Pre-cut intumescent hinge pads available

Hanging Devices / Mortise Hinge Grade 3

Features

Double ball bearing, five knuckle hinge
Successfully type tested for conformity to all the the requirements of BS EN1935 / EN 1634
Supplied with SS Screws
Load bearing capacity up to 120kg
Available in square ot radius corner
Tested to over 200,000 cycles
Suitable for fire/smoke resistant doors
Finished with softened edges
Pre-cut intumescent hinge pads available

Hanging Devices / Mortise Hinge Grade 4

Stainless Steel Single Action Spring Hinge

Open to 180° as long as the frame detail doesn't obstruct it.
Single Acting, Square Corner Template
Adjustable Spring Tension
Self-closing
Size: 3"/3.5"/4"/4.5"
Mainly used in occasions that automatically close doors and protect privacy: toilets, commercial doors, etc.
Hinge leaf with two knuckles is fixed to the frame.

European Mortise Lock 1

D&D CE mark European Mortise Lock Successfully tested for conformity to all the requirements of BS EN 12209

Introduction - Mortise Locks

The D&D range of architectural locks is manufactured to the highest engineering standards and designed to offer a high price / performance ratio.
They have been successfully type tested to all the requirements of BS EN 12209 / EN 1634, 260 Minutes Fire Rated. Solid stainless steel latchbolts, deadbolts, followers, forend and strike plate provide enhanced durability and security.

European Mortise Lock 2

Function: Latch bolt can be operated by lever handles on either side. Deadbolt thrown and retracted frorn one or frorn both sides depending on he type of cylinder installed. Cylinder action will operate both deadbolt and latchbolt. Deadbolt 2 turns.

Fire Rated Sash Lock

Lockcase Reversible Direction

Fixing Of adjusted spring force

Loosen:

Slacken safety lock screw on the side of the knuckle.

Press down firmly and simultaneously turn the hecagon socket screw in the knuckle anti-clockwise. Repeat this action until the hinge is completely

loosened. Then install the hinges.

Tighten:

Turn the hexagon socket screw in the knuckle clockwise and set spring force of all hinges equally as required.

Re-tighten safety lock screw.

1.Forend
2.Latch
3.Dead bol!
4.Screw channel far cylinder
5.Lock case
6.Action-arm
7.Follower
8.Turning device

9.Spring

X.Backset

Y.Distance

A.Lock case width

B.Lock case height

L.Forend length

F.Forend width

Technical lnformation

BS EN 12209 / DiN 18251, CE Classification: 3X910G3BC20
Latch ( Casting ): S8304 ( Durability: Grade X, 200,000 test cycles, 120N load on latch cycles )
Dead bolt: S8304 ( Durability: Grade X, 50,000 test cycles )
EN 1634:260 Minutes Fire Rated

Optional functions

Escape Door Lock
Sash Door Lock
Classroom Lock
Storeroom Lock
Privacy Lock
Passage Lock With
Deadboll Lock
Bathroom Lock
Night Latch

Application tor Doors

Wooden Doors/Timber
Metal/Steel Doors
Office Doors

Hol low Metal Doors
Security Doors
Fire-Rated Doors

Single Door

Composıte Door

Doubte Door

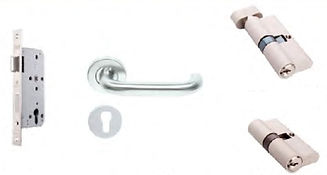

Standard Configuration

DDML009

DDTH001

DDLC004

DDLC003

Fire Door: rotate the handle to open the door
frorn inside, by key form outside

Smoke Door: open by key in both sides

*Master key is available

Fire Rated Latch Lock

European Mortise Lock 4

Fire Rated Deadbolt Lock

Lockcase Reversible Direction

Function: Deadbolt thrown and retracted from one side or from both sides depending on the type of cylinder installed. Deadbolt 2 turns.

European Mortise Lock 3

Function: Latch bolt can be operated by lever handles on either side all the time

Door Closer 1

Concealed Door Closer

Features

Concealed Overhead Closer, "invisible"door closer
Ulstandard
Precise Aluminum Body with Needle Bearing
Adjuslable Closing & Latching Speed
Closer body 32mm Thickness. Non Handed lnstallation
Slide Tracking arm with hold-open function

Strike Plate Option

Standard Configuration

DDTH001

DDML011

Passage Door: unlocked by both sides.

Strike Plate Option

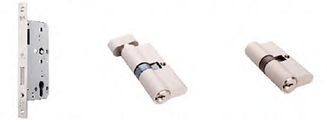

Standard Configuration

DDLC004

DDML013

DDLC003

Equipment Door: inside and outside open by key *Master key is available

DDLC010

DDML013

DDES001

DDFH013

Door Closer 2

Concealed Door Closer

Features

UL 1 OC for 3 hours fire rating. Durability: 500,000 eyci es above
Non handed for left or right hand door
Precise cast aluminum body & steel arm
Adjustable closing & latching speed
lnstallation type: Concealed mount
Adjustable spring force #2-4
Rack and pinion design
Finish: silver(Aluminum); others upon lhe request

Tube Wells Door: lock or open outside by key lnstallation diagram

Door Closer 3

Concealed Door Closer

Features

Applicable to single door with the maximum door width of 1100mm.
Precise sealed, preventing oll leakage, preventing oil leakage.
High quality die-casting aluminum alloy, protected with two-layer bright paint.
Two hydraulic press valves controlling two stage doors closing speed automatically, 180 degrees fully hydraulic control.
Two stage speed adjustment, 90-160 degree locating function is available.
Either to be installed on doors with normal method or to be installed on door frame.
Standard color: golden, sil ver, copper or other kinds of color on clients'requirements.

Door Closer 4

Concealed Door Closer

Features

Adjustable Closing & Latching Speed European Style Designed Heavy Duty cıoser. Commercial Use
Two speed valves & Back Check va ive on the freni of door closer body, which hidden un der of slide cover
Power Adjustable #2, #3, #4, #5 by Spring
Far single action doors Max 1250 mm

Door Closer 5

Concealed Door Closer

Features

Adjustable Closing & Latching Speed.
European Style Designed Medium Duty Closer, Commercial Use
Die-casting body &Steel Scissors Arm,Slide Track Arm Optional.
Two speed valves on the front of door closer body, which hidden under of slide cover.
